Webasto Air Top EVO 40 High Altitude RV Diesel Heater Kit 5500m 4kW 12V inc Multi Control HD
Webasto High Altitude RV Motorhome Kit Air Top EVO 40 Diesel 4kW 12V
Extreme altitude heating kit, including a specialist version of the Webasto Air Top EVO 40 RV diesel heater with automatic altitude compensation built-in, capable of operation up to 5500m (18044ft).Powerful heat output of 4kW 13650BTU. It has impressively an economical electrical and fuel consumption.
The Air Top EVO 40 HA air heater kit assembled by Butler Technik offers all components required to install in your motorhome, campervan or RV, these include the Butler Technik Mount PRO turret plate, fixing nuts and fuel kit. This air heater can be installed in addition to conventional heating systems for optimum comfort. Stay warm and dry while your engine is off.
- Fast and efficient independent off-grid heating at extreme altitudes, without intruding on valuable interior vehicle space. Capable of providing heat at altitudes up to 18044ft 5500m above sea level
- Low fuel consumption of 0.05 - 0.13 gal/h (0.0.22 - 0.59l/h) depending on modulated heat output of 5100 BTU - 13650 BTU (1.5kW - 4kW)
- Includes the Webasto Multi Control HD Timer, with active 7-day programmable timing functions, instant heat mode, vent mode and digital fault code readout
- Genuine Webasto manufactured and guaranteed heater kit from an authorised Webasto distributor. Worldwide technical support, North America USA, Canada, Europe, Australasia
High altitude ready
The Webasto Air Top EVO 40 HA RV kit can operate at altitudes up to 5500m 18044ft above sea level, the highest in class.
Powerful, economical and whisper quiet
Fast and efficient heat delivered through a modulated 1.5 - 4kW power output, ensuring maximum comfort whilst delivering unrivalled fuel efficiency.
Warm inside
Coming in from a cold, wet hike? Comfort delivered on time using the programmable Multi Control HD 7 Day Timer. Ensuring your RV is always warm inside.

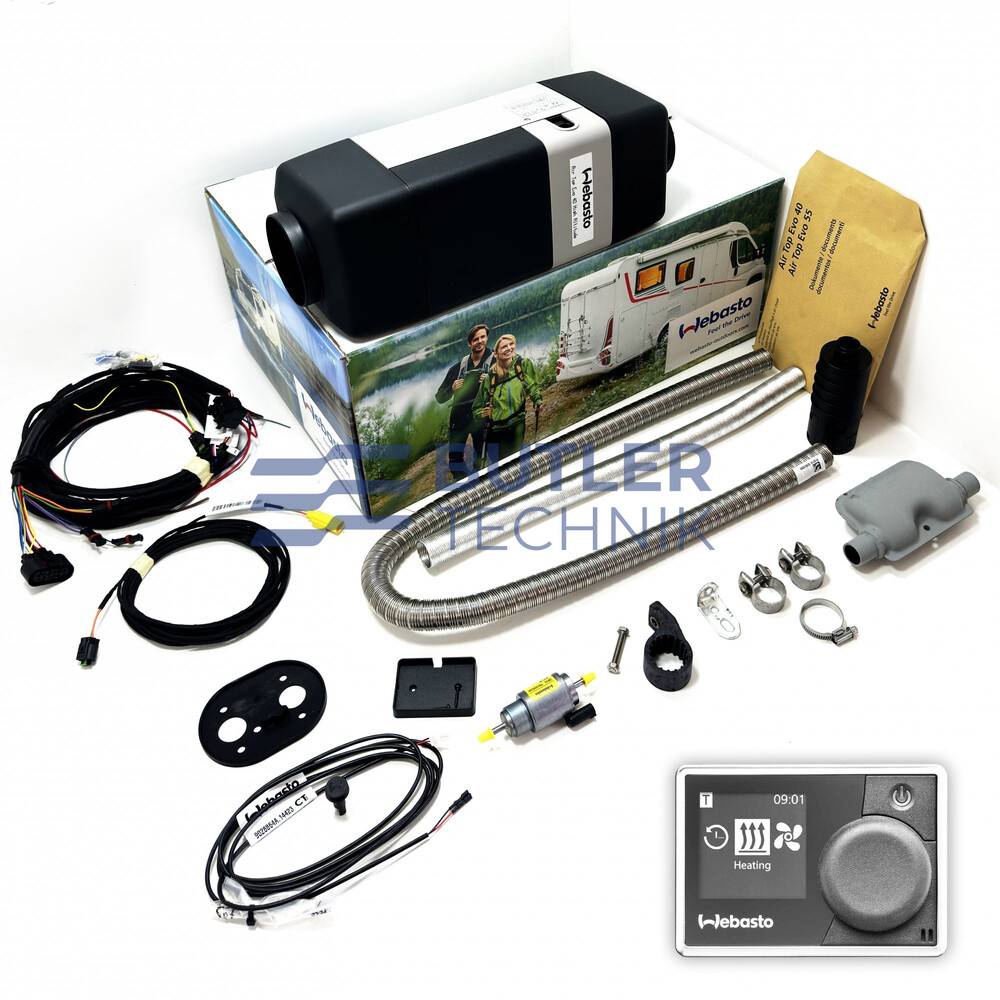

Webasto RV Air Top EVO 40 heater kit contents included:
- Webasto Air Top EVO 40 HA Diesel heater 12V
- Multi Control HD 7-day programmable timer and temperature controller
- Remote temperature sensor for accurate temperature control
- Digitally switched fuel dosing pump - quiet operation
- Heavy duty fuel pump holder kit to reduce operating sound of dosing pump
- 24mm exhaust silencer muffler and additional fixing clamps
- Combustion air muffler kit for intake air noise reduction
- All electrical wiring harnesses, connections and fuses
- 6m x fuel pipe, fuel connectors and in-line fuel filter
- 1.5m x stainless steel exhaust flex pipe and 0.5m combustion air pipe
- Webasto documentation
Additional Butler Technik components included for ease of installation:
- Stainless steel turreted Mount PRO floor mount plate 30mm deep - safe installation through insulated flooring 5" (127mm) x 1.18" (30mm) circular flange on lower side, ideal for wooden floor linings or corrugated steel floors
- Mount PRO stainless steel fixing nuts for safe and easy mounting the heater to the Turret plate without obstruction to ensure proper fixing of all major underside components
- Fuel tank pickup connection kit for providing a fuel supply to the heater directly from the vehicle fuel tank

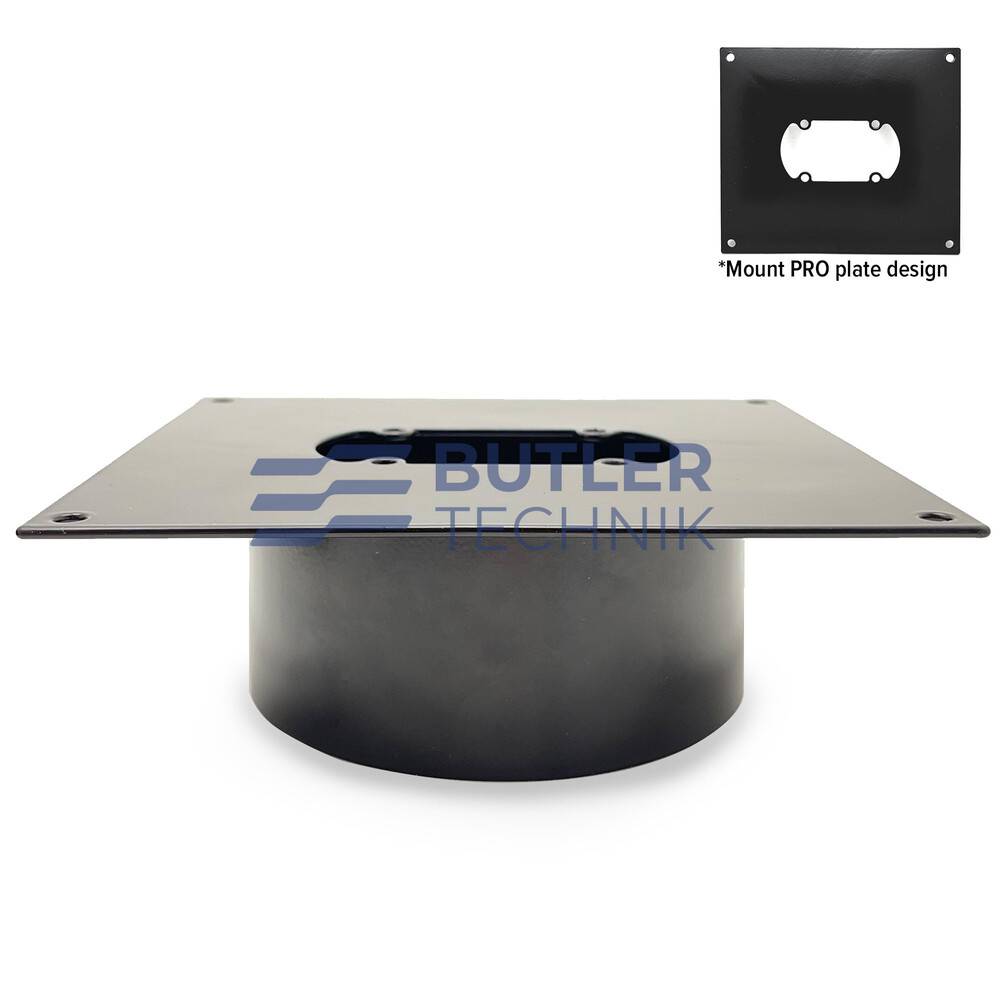

A faster, safer and simpler installation with the Butler Technik 'Mount PRO' turret floor plate
- A faster installation with the Butler Technik designed mount plate, allowing unrestricted access to heater for SAFETY FIRST fixing of exhaust, combustion air and fuel pipe, before mounting heater to plate.
- Unique Mount PRO design with deeper floor insulation in mind, without compromising safety and quality
- Carefully designed to allow proper seating of heater base gasket onto floor plate. Easily access remaining heater mount studs
- Easy access to all important safety-critical connections prior to mounting to vehicle
- Overall plate dimensions 185mm x 165mm (7.25" x 6.5")
- Stainless steel Circular turret flange 127mm (5") diameter x 30mm (1.18") depth
This is a Webasto heater kit package exclusive to Butler Technik. If you have any questions please contact the Butler Technik support team, who are always happy to help.
Available Downloads
- Webasto Air Top EVO 40 Vehicle Installation Manual
- Webasto Air Top EVO 40 Operating Instruction Manual
- Webasto Air Top EVO 40 Spare Parts Manual
- Webasto Air Top EVO 40 Workshop Manual
- Webasto Air Top EVO 40 Marine Installation Instruction Manual
- Webasto Air Top EVO 40 High Altitude Operation
- Webasto Air Top EVO 40 Motorhome RV Operation Manual
- Webasto Air Top EVO 40 Dual Heater Installation
- Webasto Air Top EVO 40 Technical Specifications
- Webasto Air Top EVO 40 Controller Wiring Diagrams
