Eberspacher Espar Airtronic M3 D4R 12V 4KW 13650 BTU RV HAK Altitude Ready inc Easy Start PRO
A compact, quiet and economical heater capable of providing reliable heating up to altitudes of 5500m (18044ft).

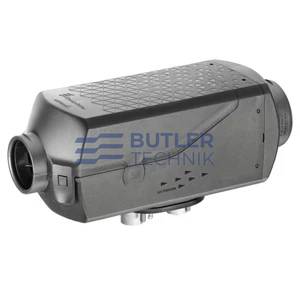

The Eberspacher Espar Airtronic M3 D4 R is a diesel fired 4kw (13650 BTU) heater ideal for RV's and large motorhomes.The Eberspacher M3 D4 Airtronic offers optimised fuel efficiency, a range of operation modes and unsurpassed safety standards. Programmable independent heating (does not use heat from the engine) for all types of road vehicle use. Certified for installation in passenger areas and in proximity to dangerous substances.
The D4R heater version is the new version of the incredibly popular D4S Plus 252484 heater model, designed for use with a smaller ducting size for easier installation into Motorhome, RV and Marine applications.
Real-time temperature monitoring, with latest heat output modulation technology
PLEASE NOTE - Vehicle Fuel tank integration can be achieved with an Eberspacher UK approved fuel pick-up kit.
Benefits of the new Airtronic M3 Include;
Stepless heating performance control.
This allows for a more dynamic heat output, that automatically modulates to maintain required temperature. The new “Stepless output control” has also improved the operating sound of the Airtronic M3
Noise levels optimised.
The new AM3 Kit also includes the new, almost silent, Eberspacher digital fuel dosing pump with mechanical damping ring and intelligent current control.
Low maintenance.
The Airtronic 3 has an potential service life of 5000 hours. Of course this depends on installation and how the unit is used. It is advised you have your Eberspacher serviced annually to ensure your heater is working as efficiently as possible.
Automatic Altitude Adjustment.
Altitude adjustment will be automatically handled by the Eberspacher Airtronic 3 up to 5500m (18044ft) above sea level; no additional altitude kit is required, the AM3 has an integrated altitude sensor.

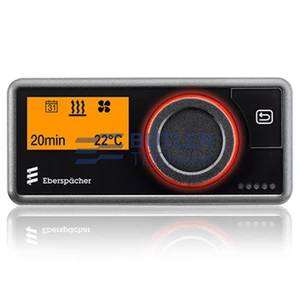

OBD On-board diagnostics with the EasyStart PRO.
Fault display via the Easy Start PRO. The Airtronic M3 coupled with an Easy Start PRO will give a text-based fault description, reducing confusion and saving time diagnosing the issue.
For in depth diagnosis of potential heater problems, heater and controller fault codes are stored in the workshop menu of the controller.

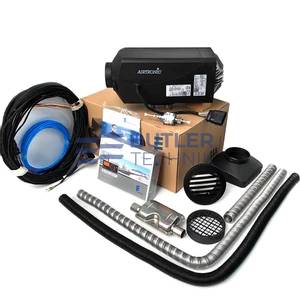

Single outlet kit contents:
- Eberspacher Airtronic D4 R M3 self regulating air heater with EasyStart PRO 7 Day Timer Diagnostic Reader
- All electrical harnesses and connections, 6m Switch & power harness
- Stainless steel exhaust pipe with silencer, clamps and p clips (Additional lengths of 24mm Exhaust pipe available if required)
- 1 metre of combustion Intake pipe
- 75mm Air outlet (Additional air outlets are available if required)
- Fuel system, complete with fuel metering pump, fuel pipe & hose clips - no stand-pipe included.
- 0.5 metre x 75mm flexible ducting (Additional ducting required? Please look in our Ducting section)
- Air entry grille
- All necessary clips and screws for standard installation included
- Comprehensive installation manual
- Eberspacher M3 D4R Airtronic 24 months warranty. (Return to Butler Technik)
Please note; this kit excludes a fuel pick up/standpipe please look in the installation accessories
Bespoke kits are available, or if you require any more accessories for this heater kit please contact us with your requirements.
Historical Product Codes
D4S Plus252746050000
25.2746.05.0000
252957050000
25.2957.05.0000
Available Downloads
- Eberspacher Airtronic M3 D4L B4L Spare Parts Diagram and Part Numbers
- Eberspacher Airtronic M3 D4L B4L Workshop Repair Manual
- Eberspacher Airtronic M3 D4L B4L Technical & Installation Manual
- Eberspacher Airtronic M3 D4L B4L Product Advantages Overview
- Eberspacher Airtronic M3 D4L B4L Heater Error Fault Codes Manual
- Eberspacher Airtronic M3 D4L B4L Spare Parts Diagram and Part Numbers
- Eberspacher Airtronic M3 D4L B4L User Operating and Maintenance Instruction Manual
- Eberspacher Airtronic M3 D4L B4L Technical & Installation Manual
- Eberspacher Airtronic M3 D4L B4L Workshop Repair Manual
